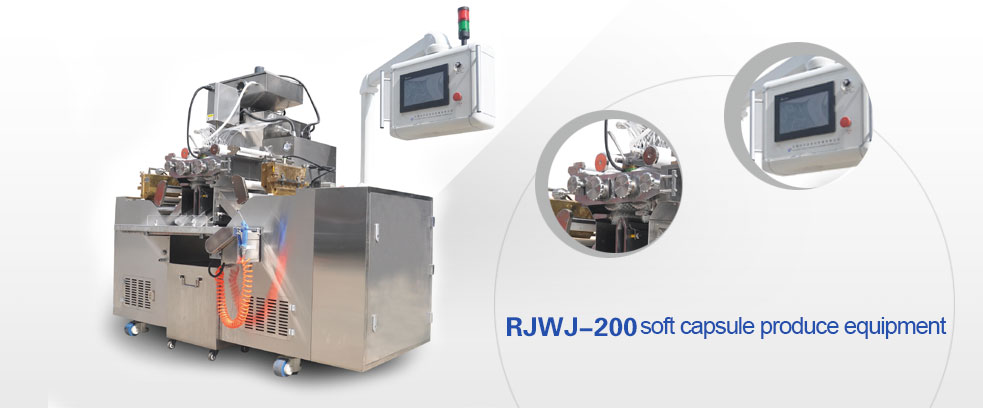

RJWJ-200 soft capsule produce equipment

RJWJ-200-type soft capsule machine rolling mode is successful development on the basis of absorbing at home and abroad advanced technology This is roll mode Soft Capsule Machine.The Mold¡¯s length is 200 millimeters which have the new Row-hole approach to meet the needs of manufacturers of high-yielding. Combination of pneumatic fixtures and micro-lubrication technology in China is a unique. Soft Capsule Machine can be oil, suspension or paste into the quantitatively, produce variety size, shape, color of soft capsules The soft capsules with fast and high bioavailability, elegant appearance, easy to swallow and difficult to oxidation, easy to storage and carrying it, etc. More and more consumers like it. Has been widely used in medicine, health products, cosmetics and other industries.

RJWJ-200 mainly advantage

RJWJ-200 Series Soft Capsule Machine is one of our company¡¯s new products which is automated production lines,. The Machine use new technology and materials, well-designed, precision manufactured

The mold ues Gas pressure to avoid misoperation of the damage caused by mold, Done to reduce the consumption.

Control box using the German Siemens and Siemens PLC programmable control true color touch screen, power control components are imported to control the electronic control system, stability, performance, well, soft capsule machine in order to ensure the targets.

1 SIEMENSPLC control used.( Compressive, Long life)

2. With fault diagnosis function.

3. Simulation of machine images, vivid clear at a glance.

4. Simple intuitive operation.

Technical Parameters

roll mode speed£º 0-5rmp
roll mode size£º ¡Ó103¡Á200mm
capsule production:
charge for a single plunger£º 0-2£¨ml£©
load difference£º <= ¡À2%
load precision£º <= ¡À1%
power supply£º 380V 50HZ
consumption of lubricating of rubber£º 300 ml/h (5rpm)
total power£º 9 Kw
dimensions: 2050X890X2000mm
weight£º 1200KG
