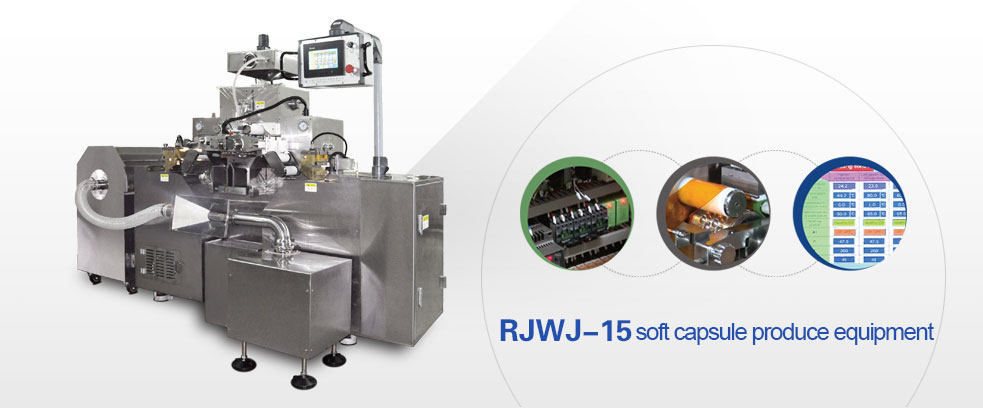

RJWJ-15 Softgel Encapsulation Machine

RJWJ-15 Softgel Encapsulation Machine, is the newest style wedesigned on the basis of the old style. It is designed for the market vacancy. The machine has a compact structure, beautiful outlook, stable performance, moderate capacity and it is more automated and humanized. The capacity is 30000 capsules/h, so it is an ideal choice for the small production manufacture.

RJWJ-15 mainly advantage
The Gelatin Box adopts liquid level sensor control the quality of the liquid gelatin automatically.
The whole machine adopts newest temperature controlling system, so the temperature can be controlled precisely.
The mould is of high precision, the diameter is 103mm, the capacity is stable. The machine can be used to the research and so the production.
4. The volume is precise.

Technical Parameters

dimension 1680 * 600 * 1550 £¨mm£©
roll mode size 103 * 100 £¨mm£©
rolll mode pressure 0.1 - 0.5 (mpa)
capsule production
30000pill/hour £¨8#olive£©
roll mode speed 0 - 5 £¨round/min£©
feeding precision ¡Ý¡À1%
motor power 0.75 kw
total power 5 kw
power supply 380v 50hz
weight 550kg
